Revision 7
#7210
Store at +4C
PathScan® Phospho-TrkA (Tyr490) Sandwich ELISA Kit
1 Kit
(96 assays)
Species Cross Reactivity:
H
UniProt ID:
#P04629
Entrez-Gene Id:
#4914
877-616-CELL (2355)
877-678-TECH (8324)
3 Trask Lane | Danvers | Massachusetts | 01923 | USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes | Product # | Quantity | Color | Storage Temp |
---|---|---|---|---|
TrkA Mouse mAb Coated Microwells | 17128 | 96 tests | +4C | |
Phospho-TrkA (Tyr490)/TrkB (Tyr516) Rabbit Detection mAb | 13146 | 1 ea | Green (Lyophilized) | +4C |
Anti-rabbit IgG, HRP-linked Antibody (ELISA Formulated) | 13272 | 1 ea | Red (Lyophilized) | +4C |
Detection Antibody Diluent | 13339 | 11 ml | Green | +4C |
HRP Diluent | 13515 | 11 ml | Red | +4C |
TMB Substrate | 7004 | 11 ml | +4C | |
STOP Solution | 7002 | 11 ml | +4C | |
Sealing Tape | 54503 | 2 ea | +4C | |
ELISA Wash Buffer (20X) | 9801 | 25 ml | +4C | |
ELISA Sample Diluent | 11083 | 25 ml | Blue | +4C |
Cell Lysis Buffer (10X) | 9803 | 15 ml | -20C |
*The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.
Description
PathScan® Phospho-TrkA (Tyr490) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects phospho-TrkA (Tyr490) protein. A TrkA Mouse mAb has been coated onto the microwells. After incubation with cell lysates, both phospho- and nonphospho-TrkA proteins are captured by the coated antibody. Following extensive washing, Phospho-TrkA (Tyr490) Antibody is added to detect phospho-TrkA protein. Anti-rabbit IgG, HRP-linked Antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of optical density for this developed color is proportional to the quantity of Phospho-TrkA (Tyr490) protein.
*Antibodies in this kit are custom formulations specific to kit.
Specificity/Sensitivity
PathScan® Phospho-TrkA (Tyr490) Sandwich ELISA Kit #7210 detects phospho-TrkA (Tyr490) Protein. As shown in Figure 1, using this ELISA Kit #7210, a significant induction of Phospho-TrkA (Tyr490) is detected in 3T3/TrkA cells treated with NGF. However, levels of total TrkA (phospho and nonphospho) detected by PathScan® Total TrkA Sandwich ELISA Kit #7208, remain unchanged (Figure 1). This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.
Background
The family of Trk receptor tyrosine kinases consists of TrkA, TrkB, and TrkC. While the sequence of these family members is highly conserved, they are activated by different neurotrophins: TrkA by NGF, TrkB by BDNF or NT4, and TrkC by NT3 (1). Neurotrophin signaling through these receptors regulates a number of physiological processes, such as cell survival, proliferation, neural development, and axon and dendrite growth and patterning (1). In the adult nervous system, the Trk receptors regulate synaptic strength and plasticity. TrkA regulates proliferation and is important for development and maturation of the nervous system (2). Phosphorylation at Tyr490 is required for Shc association and activation of the Ras-MAP kinase cascade (3,4). Residues Tyr674/675 lie within the catalytic domain, and phosphorylation at these sites reflects TrkA kinase activity (3-6). Point mutations, deletions, and chromosomal rearrangements (chimeras) cause ligand-independent receptor dimerization and activation of TrkA (7-10). TrkA is activated in many malignancies including breast, ovarian, prostate, and thyroid carcinomas (8-13). Research studies suggest that expression of TrkA in neuroblastomas may be a good prognostic marker as TrkA signals growth arrest and differentiation of cells originating from the neural crest (10).
Background References
- Huang, E.J. and Reichardt, L.F. (2003) Annu Rev Biochem 72, 609-42.
- Segal, R.A. and Greenberg, M.E. (1996) Annu Rev Neurosci 19, 463-89.
- Stephens, R.M. et al. (1994) Neuron 12, 691-705.
- Marsh, H.N. et al. (2003) J Cell Biol 163, 999-1010.
- Obermeier, A. et al. (1993) EMBO J 12, 933-41.
- Obermeier, A. et al. (1994) EMBO J 13, 1585-90.
- Arevalo, J.C. et al. (2001) Oncogene 20, 1229-34.
- Reuther, G.W. et al. (2000) Mol Cell Biol 20, 8655-66.
- Greco, A. et al. (1997) Genes Chromosomes Cancer 19, 112-23.
- Pierotti, M.A. and Greco, A. (2006) Cancer Lett 232, 90-8.
- Lagadec, C. et al. (2009) Oncogene 28, 1960-70.
- Greco, A. et al. (2010) Mol Cell Endocrinol 321, 44-9.
- Ødegaard, E. et al. (2007) Hum Pathol 38, 140-6.
Cross-Reactivity Key
H: Human M: Mouse R: Rat Hm: Hamster Mk: Monkey Vir: Virus Mi: Mink C: Chicken Dm: D. melanogaster X: Xenopus Z: Zebrafish B: Bovine Dg: Dog Pg: Pig Sc: S. cerevisiae Ce: C. elegans Hr: Horse GP: Guinea Pig Rab: Rabbit G: Goat All: All Species Expected
Trademarks and Patents
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
PathScan is a registered trademark of Cell Signaling Technology, Inc.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.
Limited Uses
Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.
Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.
Revision 7
Figure 1. Treatment of 3T3/TrkA cells with NGF stimulates phosphorylation of TrkA at Tyr490, detected by PathScan® Phospho-TrkA (Tyr490) Sandwich ELISA Kit #7210, but does not affect the level of total TrkA detected by PathScan® Total TrkA Sandwich ELISA Kit #7208. OD 450 readings are shown in the top figure, while the corresponding western blot using Phospho-TrkA (Tyr490) Antibody #9141 (right panel) or TrkA Rabbit mAb #2505 (left panel), is shown in the bottom figure. The human TrkA is expressed in 3T3/TrkA cells.

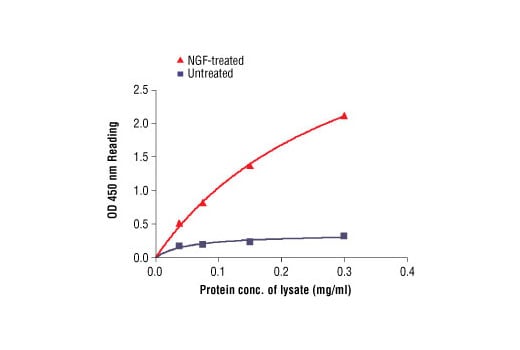

Figure 2. The relationship between protein concentration of lysates from untreated and NGF-treated 3T3/TrkA cells and kit assay optical density readings is shown. After starvation, 3T3/TrkA cells (85% confluence) were treated with NGF (100 ng/ml) for 2 min at 37°C, and then lysed.
