Revision 1
#26776
Store at -20C
Gasdermin Family Antibody Sampler Kit
1 Kit
(6 x 20 microliters)
877-616-CELL (2355)
877-678-TECH (8324)
3 Trask Lane | Danvers | Massachusetts | 01923 | USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes | Product # | Quantity | Mol. Wt | Isotype/Source |
---|---|---|---|---|
Gasdermin D (E5O4N) Rabbit mAb | 69469 | 20 µl | 53, 30 kDa | Rabbit IgG |
Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb | 36425 | 20 µl | 30 kDa | Rabbit IgG |
Gasdermin E (E2X7E) Rabbit mAb | 19453 | 20 µl | 55, 30 kDa | Rabbit IgG |
Cleaved Gasdermin E (Asp270) (E8G4U) Rabbit mAb | 55879 | 20 µl | 30 kDa | Rabbit IgG |
Gasdermin A Antibody | 49307 | 20 µl | 49 kDa | Rabbit |
Gasdermin B Antibody | 76439 | 20 µl | 47 kDa | Rabbit |
Anti-rabbit IgG, HRP-linked Antibody | 7074 | 100 µl | Goat |
Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.
Storage
Background
The gasdermin family, which includes GSDMA, GSDMB, GSDMC, GSDMD, and GSDME, has been shown to play a role in inflammation and cell death. Gasdermin D has been reported to have a critical role as a downstream effector of pyroptosis (1,2). Pyroptosis is a lytic type of cell death triggered by inflammasomes, multiprotein complexes assembled in response to pathogen-associated molecular patterns (PAMPs) or danger-associated molecular patterns (DAMPs) that result in the activation of caspase-1 and subsequent cleavage of pro-inflammatory cytokines IL-1β and IL-18 (3). Gasdermin D was identified by two independent groups as a substrate of inflammatory caspases, caspase-1 and caspase-11/4/5, producing two fragments: GSDMD-N and GSDMD-C. Cleavage results in release of an intramolecular inhibitory interaction between the N- and C-terminal domains, allowing the N-terminal fragment GSDMD-N to initiate pyroptosis through the formation of pores on the plasma membrane (4-7).
Like other gasdermin family members, Gasdermin E (also called DFNA5) contains an amino-terminal pore forming domain that triggers pyroptosis. Cleavage of Gasdermin E at Asp270 is induced by apoptotic-associated caspase-3, converting apoptotic signals to pyroptosis (8). In addition, cleavage of Gasdermin E can be induced by Granzyme B secreted by NK cells and contributes to tumor suppressive activity (9). Gasdermin E expression is suppressed in several types of cancer, including gastric, colorectal, and breast carcinoma, and may be associated with decreased survival (10-12). In contrast, an increase in Gasdermin E, including the amino-terminal pore-forming fragment, is associated with conditions of excessive inflammation (13-15). Gasdermin A (GSDMA) is preferentially expressed in the epithelium of the skin and gastrointestinal tract and is frequently suppressed in gastric cancer (16-18). Gasdermin B (GSDMB) has been reported to be upregulated in several tumor types, and in breast cancer has been associated with metastasis and poor prognosis (19,20). In addition, Gasdermin B has been associated with immune disorders, including asthma (21,22). Gasdermin B can be cleaved by Granzyme A secreted from cytotoxic lymphocytes leading to pyroptotic cell death (23).
Background References
- Kayagaki, N. et al. (2015) Nature 526, 666-71.
- Shi, J. et al. (2015) Nature 526, 660-5.
- Broz, P. and Dixit, V.M. (2016) Nat Rev Immunol 16, 407-20.
- Aglietti, R.A. et al. (2016) Proc Natl Acad Sci USA 113, 7858-63.
- Ding, J. et al. (2016) Nature 535, 111-6.
- Liu, X. et al. (2016) Nature 535, 153-8.
- Sborgi, L. et al. (2016) EMBO J 35, 1766-78.
- Rogers, C. et al. (2017) Nat Commun 8, 14128.
- Zhang, Z. et al. (2020) Nature 579, 415-420.
- Kim, M.S. et al. (2008) Oncogene 27, 3624-34.
- Kim, M.S. et al. (2008) Biochem Biophys Res Commun 370, 38-43.
- Yokomizo, K. et al. (2012) Anticancer Res 32, 1319-22.
- Tan, G. et al. (2021) Cell Rep 35, 109265.
- Li, Y. et al. (2021) Cell Death Differ 28, 2333-2350.
- Shi, H. et al. (2021) Circ Res 129, 383-396.
- Tamura, M. et al. (2007) Genomics 89, 618-29.
- Saeki, N. et al. (2000) Mamm Genome 11, 718-24.
- Saeki, N. et al. (2007) Oncogene 26, 6488-98.
- Hergueta-Redondo, M. et al. (2014) PLoS One 9, e90099.
- Hergueta-Redondo, M. et al. (2016) Oncotarget 7, 56295-56308.
- Yu, J. et al. (2011) Pediatr Pulmonol 46, 701-8.
- Das, S. et al. (2016) Proc Natl Acad Sci USA 113, 13132-13137.
- Zhou, Z. et al. (2020) Science 368, eaaz7548. doi: 10.1126/science.aaz7548.
Trademarks and Patents
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.
Limited Uses
Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.
Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.
Revision 1
Western blot analysis of extracts from ACHN cells, untreated or treated with Raptinal (10 μM, indicated times), using Gasdermin E (E2X7E) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).

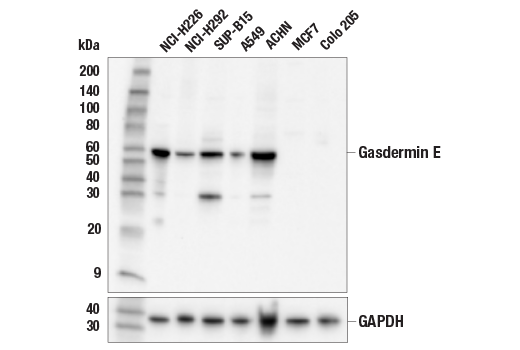

Western blot analysis of extracts from various cell lines using Gasdermin E (E2X7E) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). Negative expression Gasdermin E protein in MCF7 and Colo 205 cells is consistent with the predicted expression pattern.

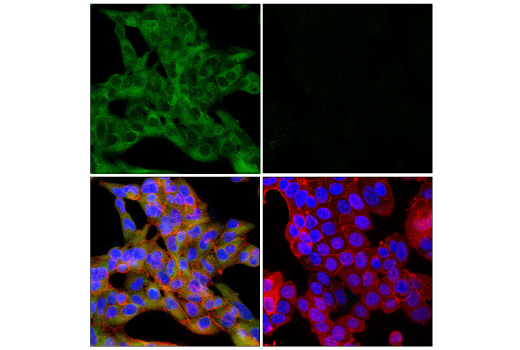

Confocal immunofluorescent analysis of ACHN cells (left, positive) and MCF7 cells (right, negative) using Gasdermin E (E2X7E) Rabbit mAb (green), DyLight 650 Phalloidin #12956 (red), and DAPI #4083 (blue).
Revision 1
Western blot analysis of extracts from THP-1 cells, differentiated with TPA #4174 (50 ng/ml, overnight) and then treated with LPS #14011 (5 μg/ml, indicated times), using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb (upper), total Gasdermin D (L60) Antibody #93709 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western blot analysis of extracts from various cell lines using Gasdermin A Antibody (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). KATO III cells have been shown to lack Gasdermin A expression.
Western blot analysis of extracts from ACHN and MCF7 cells, untreated (-) or treated with Raptinal (10 μM, 2 hr; +), using Cleaved Gasdermin E (Asp270) (E8G4U) Rabbit mAb (upper), Gasdermin E (E2X7E) Rabbit mAb #19453 (middle), or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). Negative expression of Gasdermin E protein in MCF7 cells is consistent with the predicted expression pattern.
Revision 1
Western blot analysis of extracts from HeLa cells, untreated (-) or treated with Staurosporine #9953 (1 μM, 4 hr; +), using Cleaved Gasdermin E (Asp270) (E8G4U) Rabbit mAb (upper), Gasdermin E Antibody #84005 (middle), or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
Western blot analysis of extracts from ACHN cells, untreated (-) or treated with Raptinal (10 μM, indicated times), using Cleaved Gasdermin E (Asp270) (E8G4U) Rabbit mAb (upper), Gasdermin E Antibody #84005 (middle), or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
Confocal immunofluorescent analysis of ACHN cells, either untreated (left) or treated with Raptinal (10 µM, 1 hr; middle), and MCF7 cells treated with Raptinal (10 µM, 1 hr; right) using Cleaved Gasdermin E (Asp270) (E8G4U) Rabbit mAb (green) and DAPI #4083 (blue).
Revision 1
Western blot analysis of extracts from control PC-3 cells (lane 1) or CRISPR/Cas9 Gasdermin D knockout (KO) PC-3 cells (lane 2) using Gasdermin D (E5O4N) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
Western blot analysis of extracts from various cell lines using Gasdermin D (E5O4N) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). Negative expression of Gasdermin D protein in IMR-32 cells is consistent with the predicted expression pattern.
Western blot analysis of extracts from THP-1 cells, differentiated with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174 (50 ng/mL, 24 hr and then rested 48 hr) followed by vehicle (-) or treated with Lipopolysaccharides (LPS) #14011 (5 μg/mL, 6 hr; +), using Gasdermin D (E5O4N) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
Revision 1
Immunoprecipitation of Gasdermin D protein from THP-1 extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Rabbit mAb #3900, and lane 3 is Gasdermin D (E5O4N) Rabbit mAb. Western blot analysis was performed using Gasdermin D (E5O4N) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as the secondary antibody.
Confocal immunofluorescent analysis of control PC-3 cells (left, positive) or CRISPR/Cas9 Gasdermin D knockout (KO) PC-3 cells (right, negative) using Gasdermin D (E5O4N) Rabbit mAb (green), β-Actin (8H10D10) Mouse mAb #3700 (red), or DAPI #4083 (blue).
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
Revision 1
Western blot analysis of extracts from 293T cells, untransfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length human Gasdermin B (hGSDMB-Myc/DDK; +), using Gasdermin B Antibody.
Immunoprecipitation of Cleaved Gasdermin D (Asp725) from THP-1 cells differentiated with TPA #4174 (50 ng/ml, overnight) and then treated with LPS #14011 (5 μg/ml, 6 hr). Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb. Western blot was performed using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.

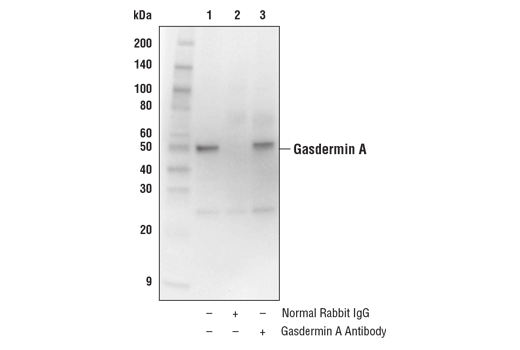

Immunoprecipitation of Gasdermin A from COLO 205 cell extracts. Lane 1 is 10% input, lane 2 is Normal Rabbit IgG #2729, and lane 3 is Gasdermin A Antibody. Western blot analysis was performed using Gasdermin A Antibody. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as a secondary antibody.
Revision 1

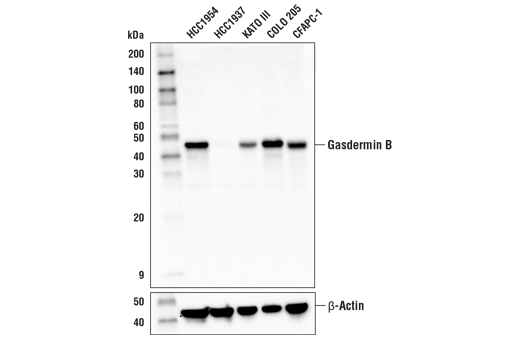

Western blot analysis of extracts from various cell lines using Gasdermin B Antibody (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.

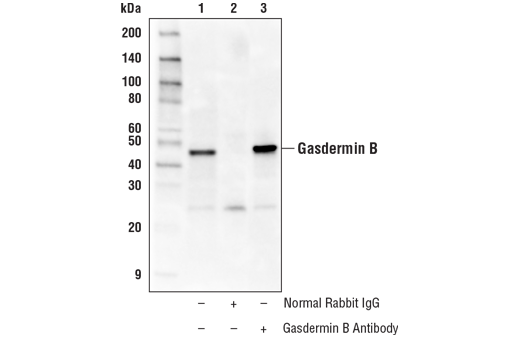

Immunoprecipitation of Gasdermin B from COLO 205 extracts. Lane 1 is 10% input, lane 2 is Normal Rabbit IgG #2729, and lane 3 Gasdermin B Antibody. Western blot was performed using Gasdermin B Antibody. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as a secondary antibody.
Revision 1
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb in the presence of non-cleaved Gasdermin D peptide (left) or Asp275 cleavage-specific Gasdermin D peptide (right).
Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded human non-Hodgkin's Lymphoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
Revision 1
Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded human spleen (left, positive) and skeletal muscle (right, negative) using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded THP-1 cell pellets, differentiated with TPA #4174 (left) and then treated with LPS #14011 (right), using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
Revision 1
Immunohistochemical analysis of paraffin-embedded human ulcerative colitis using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
