Revision 1
#17229
Store at -20C
Pro-Survival Bcl-2 Family Antibody Sampler Kit II
1 Kit
(7 x 20 microliters)
877-616-CELL (2355)
877-678-TECH (8324)
3 Trask Lane | Danvers | Massachusetts | 01923 | USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes | Product # | Quantity | Mol. Wt | Isotype/Source |
---|---|---|---|---|
Bcl-2 (D55G8) Rabbit mAb | 4223 | 20 µl | 26 kDa | Rabbit IgG |
Phospho-Bcl-2 (Ser70) (5H2) Rabbit mAb | 2827 | 20 µl | 28 kDa | Rabbit IgG |
Mcl-1 (D2W9E) Rabbit mAb | 94296 | 20 µl | 40 (human), 35 (rodent) kDa | Rabbit IgG |
Phospho-Mcl-1 (Thr163) (D5M9D) Rabbit mAb | 14765 | 20 µl | 40 kDa | Rabbit IgG |
Bcl-xL (54H6) Rabbit mAb | 2764 | 20 µl | 30 kDa | Rabbit IgG |
A1/Bfl-1 (D1A1C) Rabbit mAb | 14093 | 20 µl | 18 kDa | Rabbit IgG |
Bcl-w (31H4) Rabbit mAb | 2724 | 20 µl | 18 kDa | Rabbit IgG |
Anti-rabbit IgG, HRP-linked Antibody | 7074 | 100 µl | Goat |
Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.
Description
The Pro-Survival Bcl-2 Family Antibody Sampler Kit II provides an economical means to examine several members of the Bcl-2 family. The kit contains enough primary antibody to perform two western blot experiments.
Storage
Background
The Bcl-2 family consists of a number of evolutionarily conserved proteins containing Bcl-2 homology domains (BH) that regulate apoptosis through control of mitochondrial membrane permeability and release of cytochrome c (1-3). Four BH domains have been identified (BH1-4) that mediate protein interactions. The family can be separated into three groups based upon function and sequence homology: pro-survival members include Bcl-2, Bcl-xL, Mcl-1, A1 and Bcl-w; pro-apoptotic proteins include Bax, Bak and Bok; and "BH3 only" proteins Bad, Bik, Bid, Puma, Bim, Bmf, Noxa and Hrk. Interactions between death-promoting and death-suppressing Bcl-2 family members has led to a rheostat model in which the ratio of pro-apoptotic and anti-apoptotic proteins controls cell fate (4). Thus, pro-survival members exert their behavior by binding to and antagonizing death-promoting members. In general, the "BH3-only members" can bind to and antagonize the pro-survival proteins leading to increased apoptosis (5). While some redundancy of this system likely exists, tissue specificity, transcriptional and post-translational regulation of many of these family members can account for distinct physiological roles.
Several phosphorylation sites have been identified within Bcl-2 including Thr56, Ser70, Thr74 and Ser87 (6). These phosphorylation sites may be targets of the ASK1/MKK7/JNK1 pathway, and phosphorylation of Bcl-2 may be a marker for mitotic events (7,8). Mutation of Bcl-2 at Thr56 or Ser87 inhibits its anti-apoptotic activity during glucocorticoid-induced apoptosis of T lymphocytes (9). Interleukin 3 and JNK-induced Bcl-2 phosphorylation at Ser70 may be required for its enhanced antiapoptotic functions (10).
Mcl-1 is phosphorylated in response to treatment with phorbol ester, microtubule-damaging agents, oxidative stress, and cytokine withdrawal (11-14). Phosphorylation at Thr163, the conserved MAP kinase/ERK site located within the PEST region, slows Mcl-1 protein turnover (13) but may prime the GSK-3 mediated phosphorylation at Ser159 that leads to Mcl-1 destabilization (14).
Background References
- Cory, S. et al. (2003) Oncogene 22, 8590-607.
- Antonsson, B. and Martinou, J.C. (2000) Exp Cell Res 256, 50-7.
- Sharpe, J.C. et al. (2004) Biochim Biophys Acta 1644, 107-13.
- Korsmeyer, S.J. et al. (1993) Semin Cancer Biol 4, 327-32.
- Bouillet, P. and Strasser, A. (2002) J Cell Sci 115, 1567-74.
- Maundrell, K. et al. (1997) J Biol Chem 272, 25238-42.
- Yamamoto, K. et al. (1999) Mol Cell Biol 19, 8469-78.
- Ling, Y.H. et al. (1998) J Biol Chem 273, 18984-91.
- Huang, S.T. and Cidlowski, J.A. (2002) FASEB J 16, 825-32.
- Deng, X. et al. (2001) J Biol Chem 276, 23681-8.
- Domina, A.M. et al. (2000) J Biol Chem 275, 21688-94.
- Inoshita, S. et al. (2002) J Biol Chem 277, 43730-4.
- Domina, A.M. et al. (2004) Oncogene 23, 5301-15.
- Maurer, U. et al. (2006) Mol Cell 21, 749-60.
Trademarks and Patents
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
SignalFire is a registered trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.
Limited Uses
Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.
Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.
Revision 1
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing full-length human A1/Bfl-1 protein (hA1/Bfl-1; +), using A1/Bfl-1 (D1A1C) Rabbit mAb.
Western blot analysis of extracts from KARPAS-299 and Raji cell lines, untreated (-) or treated with TPA #4174 (200 nM, 30 min; +), using Phospho-Mcl-1 (Thr163) (D5M9D) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). KARPAS cell Line source: Dr Abraham Karpas at the University of Cambridge.
Western blot analysis of extracts from A673 and C2C12 cell lines, using Bcl-w (31H4) Rabbit mAb.
Revision 1
Western blot analysis of extracts from Jurkat and HeLa (human), COS (monkey), NIH/3T3 and L929 (mouse), and PC12 and C6 (rat) cells, using Bcl-xL (54H6) Rabbit mAb.
Flow cytometric analysis of THP-1 cells (blue, moderate expression) and K-562 cells (green, high expression) using Bcl-xL (54H6) Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Western blot analysis of extracts from Jurkat cells, untreated or treated with paclitaxel (1 μM, overnight) and with or without λ phosphatase, using Phospho-Bcl-2 (Ser70) (5H2) Rabbit mAb (upper) or Bcl-2 #2876 (lower).
Revision 1
Western blot analysis of control HeLa cells (lane 1) or Bcl-2 knockout HeLa cells (lane 2) using Bcl-2 (D55G8) Rabbit mAb #4223 (upper), or β-actin (13E5) Rabbit mAb #4970 (lower). The absence of signal in the Bcl-2 knockout HeLa cells confirms the specificity of the antibody for Bcl-2.
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
Western blot analysis of extracts from 293T cells, mock transfected or transfected with a construct expressing full-length human Mcl-1 (hMcl-1; +) or mouse Mcl-1 (mMcl-1; +), using Mcl-1 (D2W9E) Rabbit mAb.
Revision 1

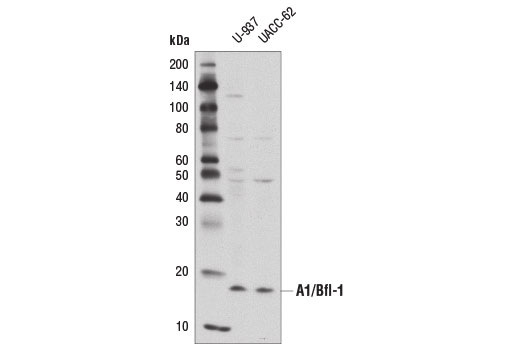

Western blot analysis of extracts from U-937 and UACC-62 cells using A1/Bfl-1 (D1A1C) Rabbit mAb.
Immunoprecipitation of phospho-Mcl-1 (Thr163) from KARPAS-299 cells treated with TPA #4174 (200 nM, 30 min) using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Phospho-Mcl-1 (Thr163) (D5M9D) Rabbit mAb (lane 3). Lane 1 represents 10% input. Western blot was perform using Phospho-Mcl-1 (Thr163) (D5M9D) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used as a secondary antibody to avoid cross reactivity with IgG heavy and light chains. KARPAS cell Line source: Dr Abraham Karpas at the University of Cambridge.
Western blot analysis of recombinant Bcl-w (amino acids 1-172) using Bcl-w (31H4) Rabbit mAb.
Revision 1
Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® BcL-xL siRNA I (+) or SignalSilence® Bcl-xL siRNA II #6363 (+), using Bcl-xL (54H6) Rabbit mAb #2764 (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Bcl-xL (54H6) Rabbit mAb confirms silencing of Bcl-xL expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.
Western blot analysis of extracts from various cell lines using Bcl-2 (D55G8) Rabbit mAb.

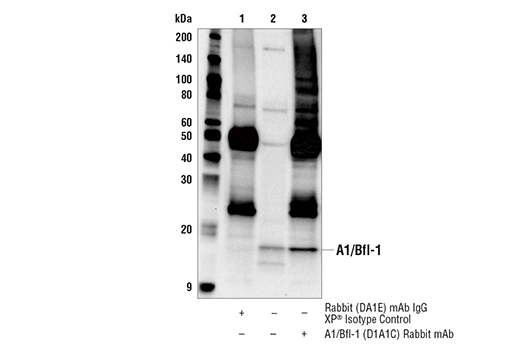

Immunoprecipitation of A1/Bfl-1 from Mutz-3 cell extracts. Lane 1 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, lane 2 is 10% input, and lane 3 is A1/Bfl-1 (D1A1C) Rabbit mAb #14093. Western blot analysis was performed using A1/Bfl-1 (D1A1C) Rabbit mAb #14093. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as the secondary antibody.
Revision 1
Immunoprecipitation of Bcl-2 from ACHN extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Bcl-2 (D55G8) Rabbit mAb. Western blot analysis was performed using Bcl-2 (124) Mouse mAb #15071. Anti-mouse IgG, HRP-linked Antibody #7076 was used as a secondary antibody.
Western blot analysis of extracts from various cell lines using Mcl-1 (D2W9E) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Immunoprecipitation of Bcl-xL from Jurkat cell extracts, using Bcl-xL (54H6) Rabbit mAb. Lane 1 is the lysate control, lane 2 is antibody alone and lane 3 is antibody plus lysate.
Revision 1
Simple Western™ analysis of lysates (1.0 mg/mL) from HeLa cells using Bcl-xL (54H6) Rabbit mAb #2764. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
Immunoprecipitation of Mcl-1 from MCF7 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Mcl-1 (D2W9E) Rabbit mAb. Western blot analysis was performed using Mcl-1 (D2W9E) Rabbit mAb. A conformation-specific secondary antibody was used to avoid cross-reactivity with IgG.
Immunohistochemical analysis of paraffin-embedded human lung carcinoma, using Bcl-xL (54H6) Rabbit mAb.
Revision 1
Flow cytometric analysis of Jurkat cells using Phospho-Bcl-2 (Ser70) (5H2) Rabbit mAb and Propidium Iodide (PI)/RNase Staining Solution #4087 to measure DNA content. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Confocal immunofluorescent analysis of MCF7 (left), L-929 (center), and SK-OV-3 (right) cells using Mcl-1 (D2W9E) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Immunohistochemical analysis of paraffin-embedded human colon carcinoma, using Bcl-xL (54H6) Rabbit mAb in the presence of control peptide (left) or Bcl-xL Blocking Peptide #1225 (right).
Revision 1
Flow cytometric analysis of L-929 cells using Mcl-1 (D2W9E) Rabbit mAb (solid line) compared to concentration matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Immunohistochemical analysis of paraffin-embedded human prostate carcinoma, showing cytoplasmic localization, using Bcl-xL (54H6) Rabbit mAb.
Flow cytometric analysis of SK-OV-3 cells (low expression; blue) and MCF7 cells (high expression; green) using Mcl-1 (D2W9E) Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Revision 1
Confocal immunofluorescent analysis of HeLa cells using Bcl-xL (54H6) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Simple Western™ analysis of lysates (1 mg/mL) from MCF-7 cells using Mcl-1 (D2W9E) Rabbit mAb #94296. The virtual lane view (left) shows the target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
