Revision 9

#43825

Store at +4C

PathScan® RP β-Amyloid (1-43) Sandwich ELISA Kit

1 Kit

(96 assays)

Species Cross Reactivity:
H

UniProt ID:
#P05067

Entrez-Gene Id:
#351

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Color Storage Temp
β-Amyloid (1-43) Rabbit mAb Coated Microwells8442696 tests+4C
β-Amyloid Mouse Detection mAb701101 eaRed (Lyophilized)+4C
HRP Diluent135155.5 mlRed+4C
TMB Substrate700411 ml+4C
STOP Solution700211 ml+4C
Sealing Tape545032 ea+4C
ELISA Wash Buffer (20X)980125 ml+4C
Cell Lysis Buffer (10X)980315 ml-20C

*The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Description

The rapid protocol (RP) PathScan® RP β-Amyloid (1-43) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of the Aβ-43 isoform of β-amyloid in a reduced assay time of 1.5 hours. This kit also detects to a lesser extent Aβ-42, as shown in Figures 1 and 2. Incubation of cell lysates and detection antibody on the coated microwell plate forms a sandwich with Aβ-43 in a single step. The plate is then extensively washed and TMB reagent is added for signal development. The magnitude of absorbance for the developed color is proportional to the quantity of Aβ-43. Learn more about all of your ELISA kit options here.

*Antibodies in this kit are custom formulations specific to kit.

Specificity/Sensitivity

The PathScan® RP β-Amyloid (1-43) Sandwich ELISA Kit detects endogenous levels of the Aβ-43 isoform of β-amyloid peptides, as shown in Figure 1. The kit sensitivity is shown in Figure 2. This kit also detects to a lesser extent Aβ-42, as shown in Figures 1 and 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Background

Amyloid β (Aβ) precursor protein (APP) is a 100-140 kDa transmembrane glycoprotein that exists as several isoforms (1). The amino acid sequence of APP contains the amyloid domain, which can be released by a two-step proteolytic cleavage (1). The extracellular deposition and accumulation of the released Aβ fragments form the main components of amyloid plaques in Alzheimer's disease (1). APP can be phosphorylated at several sites, which may affect the proteolytic processing and secretion of this protein (2-5). Phosphorylation at Thr668 (a position corresponding to the APP695 isoform) by cyclin-dependent kinase is cell-cycle dependent and peaks during G2/M phase (4). APP phosphorylated at Thr668 exists in adult rat brain and correlates with cultured neuronal differentiation (5,6).

Cross-Reactivity Key

H: Human

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PathScan is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

Limited Uses

Except as otherwise expressly agreed in a writing signed by a legally authorized representative of CST, the following terms apply to Products provided by CST, its affiliates or its distributors. Any Customer's terms and conditions that are in addition to, or different from, those contained herein, unless separately accepted in writing by a legally authorized representative of CST, are rejected and are of no force or effect.

Products are labeled with For Research Use Only or a similar labeling statement and have not been approved, cleared, or licensed by the FDA or other regulatory foreign or domestic entity, for any purpose. Customer shall not use any Product for any diagnostic or therapeutic purpose, or otherwise in any manner that conflicts with its labeling statement. Products sold or licensed by CST are provided for Customer as the end-user and solely for research and development uses. Any use of Product for diagnostic, prophylactic or therapeutic purposes, or any purchase of Product for resale (alone or as a component) or other commercial purpose, requires a separate license from CST. Customer shall (a) not sell, license, loan, donate or otherwise transfer or make available any Product to any third party, whether alone or in combination with other materials, or use the Products to manufacture any commercial products, (b) not copy, modify, reverse engineer, decompile, disassemble or otherwise attempt to discover the underlying structure or technology of the Products, or use the Products for the purpose of developing any products or services that would compete with CST products or services, (c) not alter or remove from the Products any trademarks, trade names, logos, patent or copyright notices or markings, (d) use the Products solely in accordance with CST Product Terms of Sale and any applicable documentation, and (e) comply with any license, terms of service or similar agreement with respect to any third party products or services used by Customer in connection with the Products.

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 9

CST Logo
Figure 1. The PathScan® RP β-Amyloid (1-43) Sandwich ELISA Kit #43825 detects human Aβ-43 and to a lesser degree Aβ-42 but not Aβ-40, Aβ-39, Aβ-38, Aβ-37, and pE3 peptides. The absorbance at 450 nm using the PathScan® RP β-Amyloid (1-43) Sandwich ELISA Kit #43825 for a panel of human β-amyloid peptides is shown in the figure.
ELISA Image 1: PathScan<sup>®</sup> RP β-Amyloid (1-43) Sandwich ELISA Kit

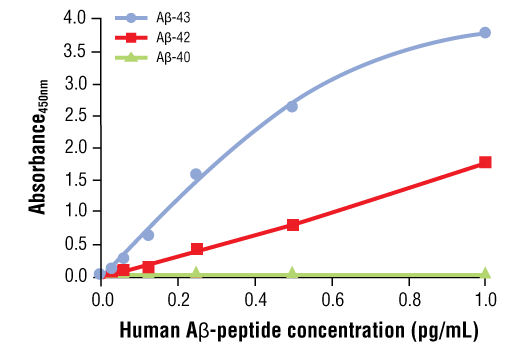

Figure 2. The relationship between the concentration of human Aβ-43, Aβ-42 or Aβ-40 peptide and the absorbance at 450 nm using the PathScan® RP β-Amyloid (1-43) Sandwich ELISA Kit #43825 is shown.
ELISA Image 2: PathScan<sup>®</sup> RP β-Amyloid (1-43) Sandwich ELISA Kit
